PANERU/PL
EY131

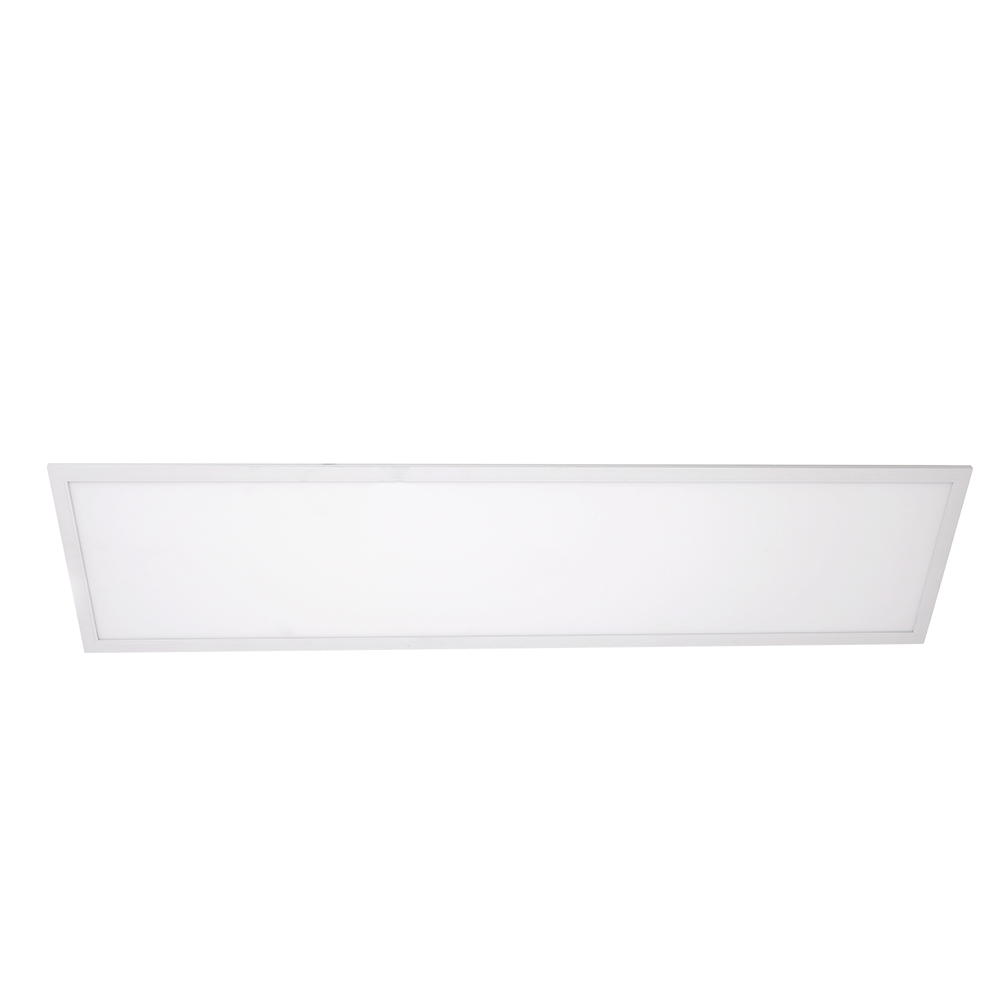

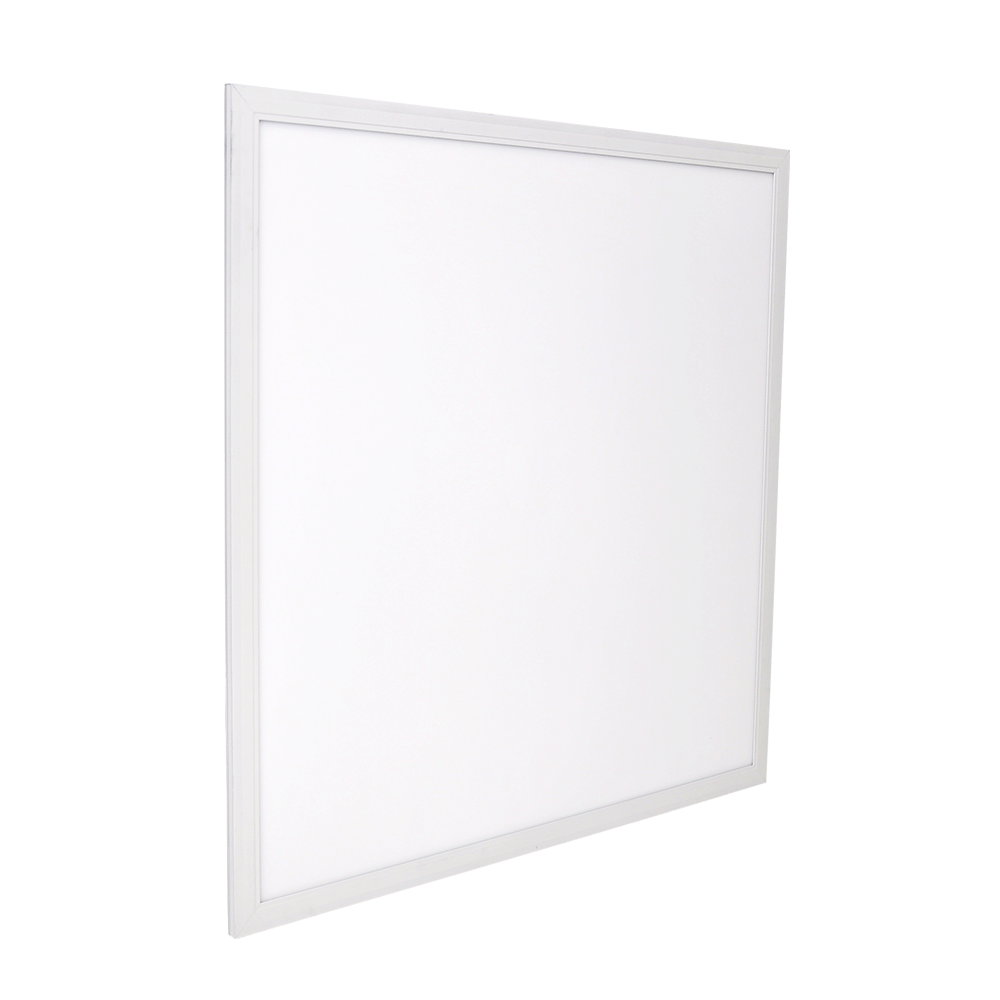

LED PANEL LIGHT
Electrical System
Wattage Range • 40W and 55W
Input voltage • 220 - 240Vac, 50/60Hz
Light Source/Optical
LED Type • SMD 2835 with TM21 and LM80
Color Temperature (CCT) • Standard 4000K, 6000K
(3000K and others upon request)
Fixtures/Housing
Ingress Protection (IP) • IP40
Housing Material • 6063 Aluminium Frame with T-Slot and Back Plate
Optic Material • Diffuser Plate + PMMA LGP
Application
• Indoor • Office • Halls • School • Hypermarkets
• Meeting Room • Hospitals • Corridor
Wattage Range • 40W and 55W
Input voltage • 220 - 240Vac, 50/60Hz
Light Source/Optical
LED Type • SMD 2835 with TM21 and LM80
Color Temperature (CCT) • Standard 4000K, 6000K
(3000K and others upon request)
Fixtures/Housing
Ingress Protection (IP) • IP40
Housing Material • 6063 Aluminium Frame with T-Slot and Back Plate
Optic Material • Diffuser Plate + PMMA LGP
Application
• Indoor • Office • Halls • School • Hypermarkets
• Meeting Room • Hospitals • Corridor
| Electrical System | ||
|---|---|---|
| Input Voltage | 220 - 240Vac, 50/60Hz | |
| Insulation Class | Class II | |
| LED Driver | LIFUD Flicker-Free Non-Dimmable (Dimmable upon request) | |
Light Source/Optical |
||
| LED Type | SMD 2835 with TM21 and LM80 | |
| Color Temperature (CCT) | Standard 4000K, 6000K (3000K and others upon request) | |
| Color Rendering Index (CRI) | Ra > 70 (Ra > 80,90 upon request) | |
| Life Time Residual Flux | (L70), >50,000 hours @ Ta: 40°C | |

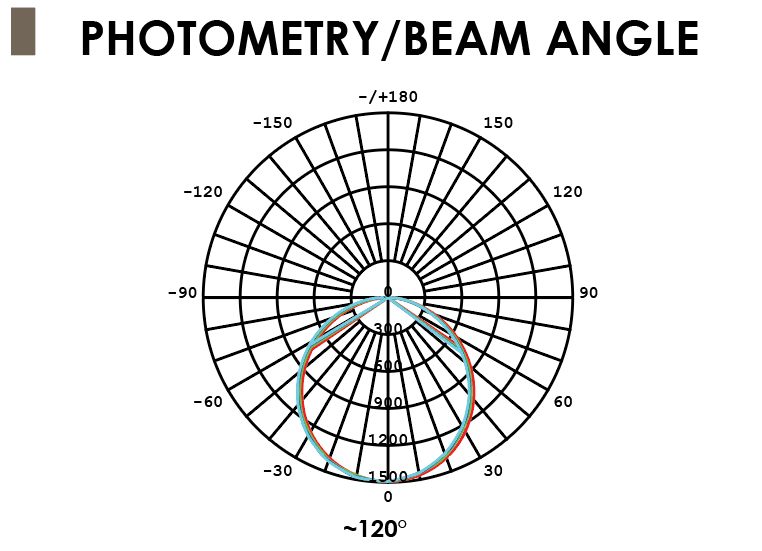

| Optical System | ~120˚ with PMMA LGP | |
| Working Temperature | -20˚C to +40˚C | |
Fixtures/Housing |
||
| Ingress Protection (IP) | IP40 | |
| Housing Material | 6063 Aluminium Frame with T-Slot and Back Plate | |
| Optic Material | Diffuser Plate + PMMA LGP | |
Compliance Test |
||
| Type Test Certified (Luminaire) | IEC 60598-1, IEC 60598-2-2 EN 60598-1, EN 60598-2-2, EN 62493, IEC 62321 IEC/TR 62778, IEC 62471 |
|
| LED Driver | IEC 61347-2-13, IEC 61347-1 | |
| EMC Certified | EN 61000-3-2, EN61000-3-3 EN 55015, EN 61547 |
|
| LED Compliances Test | IESNA LM-80, TM-21 | |
| Energy Commission Certified Product (ST-Malaysia) |
||
| SIRIM Tested Product with Safety Label (Malaysia) |
||
Applications |
||
| • Indoor • Office • Halls • School • Hypermarkets • Meeting Room • Hospitals • Corridor | ||
Optional Item |
||
| • Surface Mounting Frame | ||
| • Suspension Kit | ||
| • Recessed mounting frame | ||
| MODEL NO. | EY131-14-40-84-H EY131-14-40-86-H |
EY131-22-40-84-H EY131-22-40-86-H |
EY131-24-55-84-H EY131-24-55-86-H |
|---|---|---|---|
| Power Consumption ±5% (W) | 40W | 40W | 55W |
| Luminaire Flux ±5% (lm) | 4,000 lm | 4,000 lm | 5,500 lm |
| System Efficacy ±5% (lm/W) | 100 lm/W | 100 lm/W | 100 lm/W |
| Power Factor | 0.95 | 0.95 | 0.95 |
| Replacement of Magnetic Fluorescent | 2 x 36W | 2 x 36W | 3 x 36W |
| Total Harmonic DIstortion (THD) % | <20% | <20% | <20% |
| Color Tolerence (SDCM) | ≤6 | ≤6 |
≤6 |
| Net Weight (kg) | 2.97 | 2.93 | 6.70 |
| Gross Weight (kg) | 15.80 | 15.30 | 15.15 |
| Product Dimension, L x W x H (mm) | 295 x 1195 x 9 | 595 x 595 x 9 | 595 x 1195 X 9 |
| Individual Carton Dimension, L x W x H (mm) | 1240 x 349 X 40 | 640 x 646 x 38 | 1245 x 645 X 40 |
| Master Carton Dimension, L x W x H (mm) | 1330 x 392 x 182 | 665 x 740 x 175 | 1330 x 675 x 100 |
| Quantity/Master Carton (pcs) | 4 | 4 | 2 |
| CBM (m3) | 0.095 | 0.086 | 0.090 |

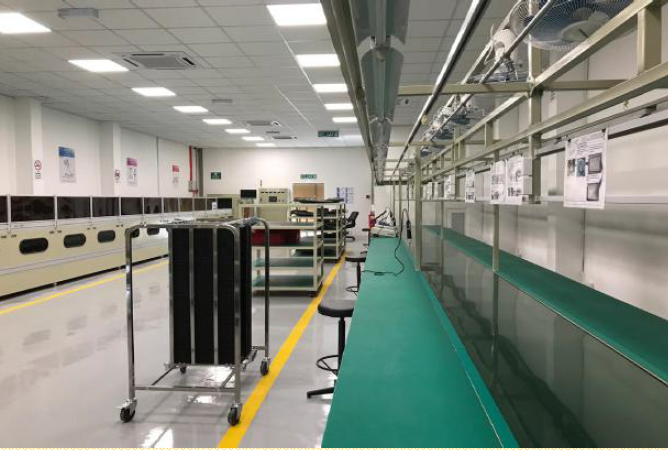

Factory Lighting

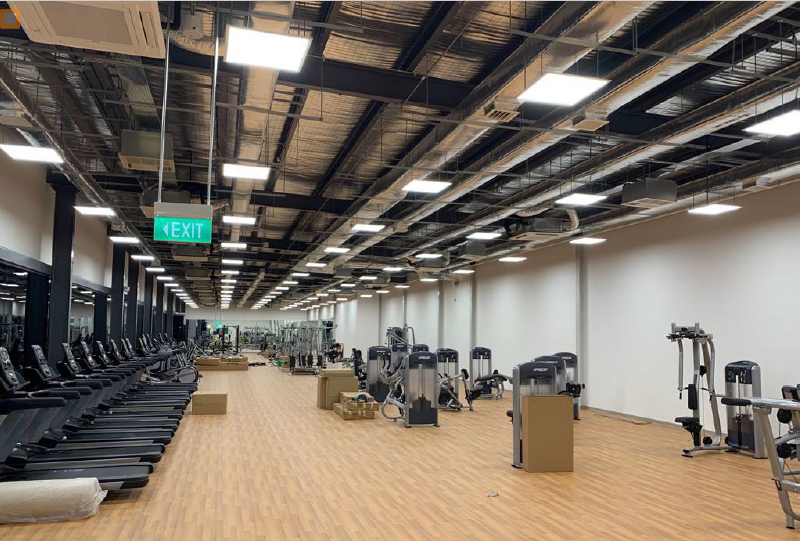

Gym Lighting

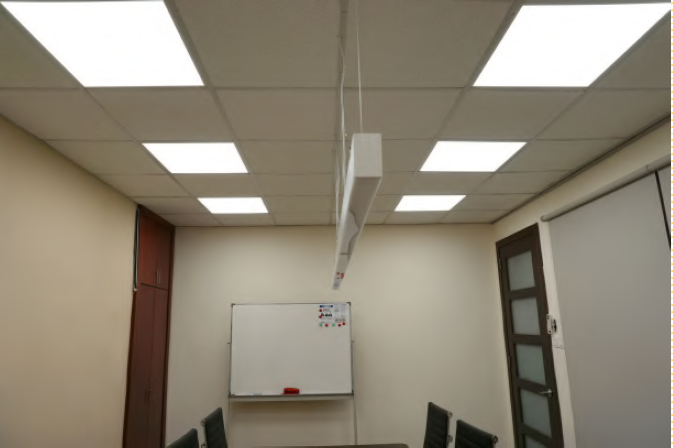

Meeting Room Lighting

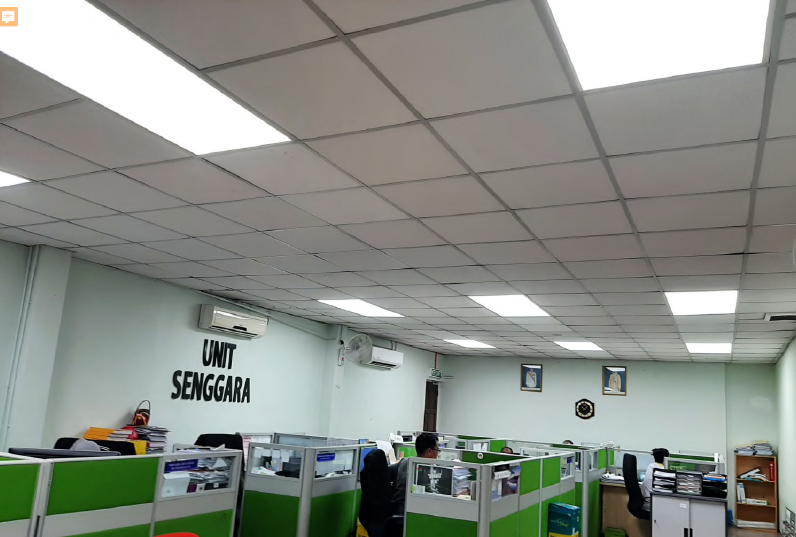

Office Lighting
