TENJO/HB
EY919

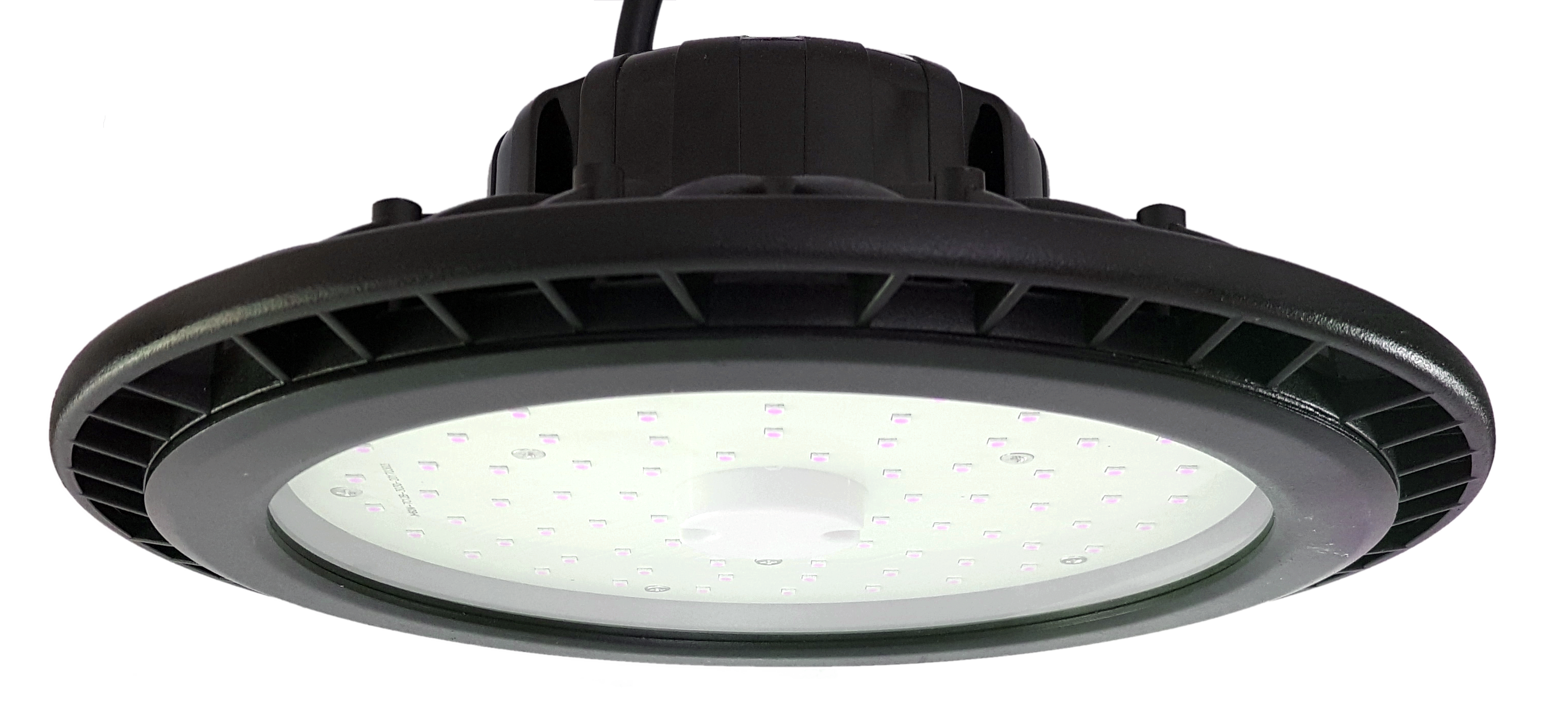

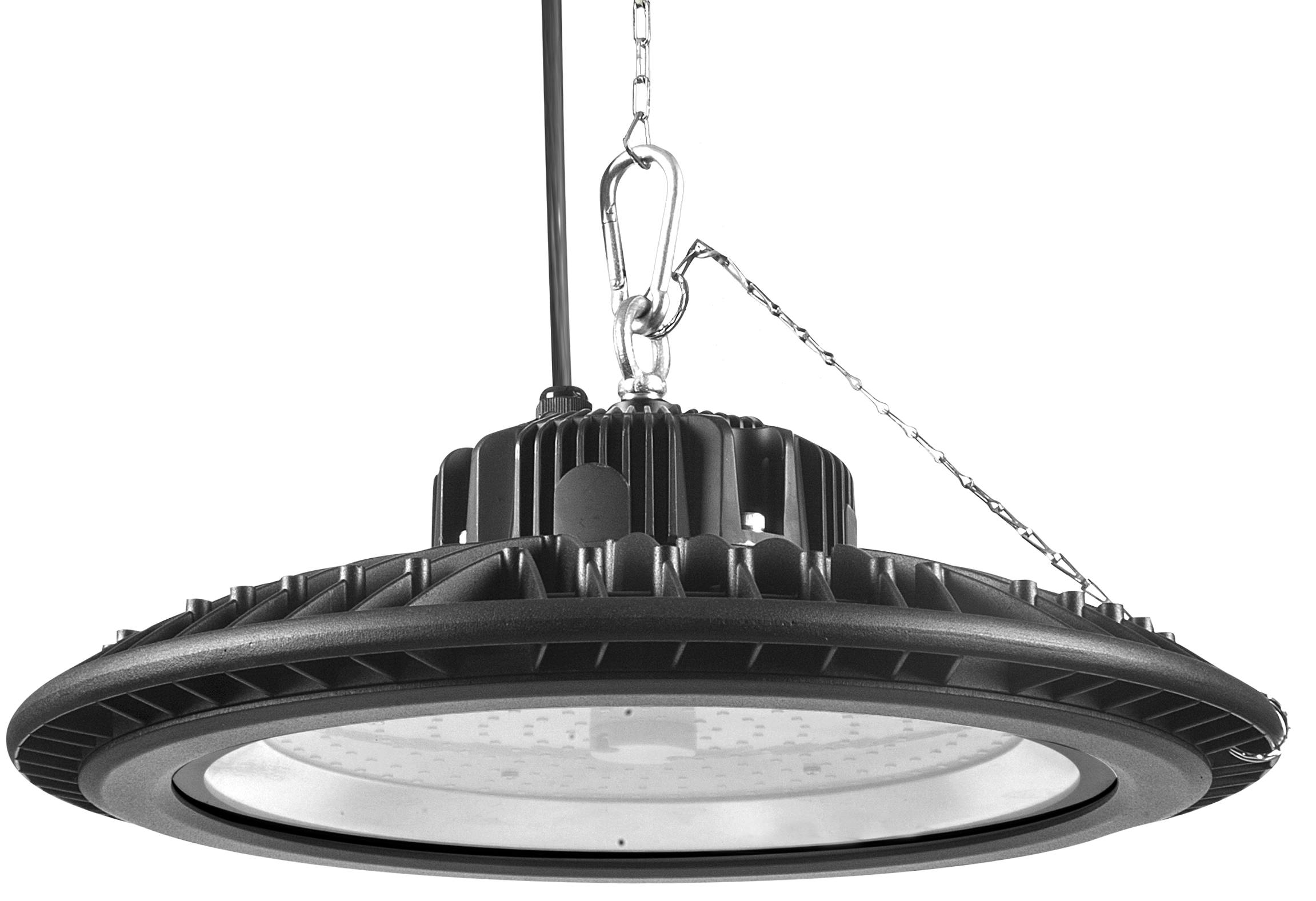

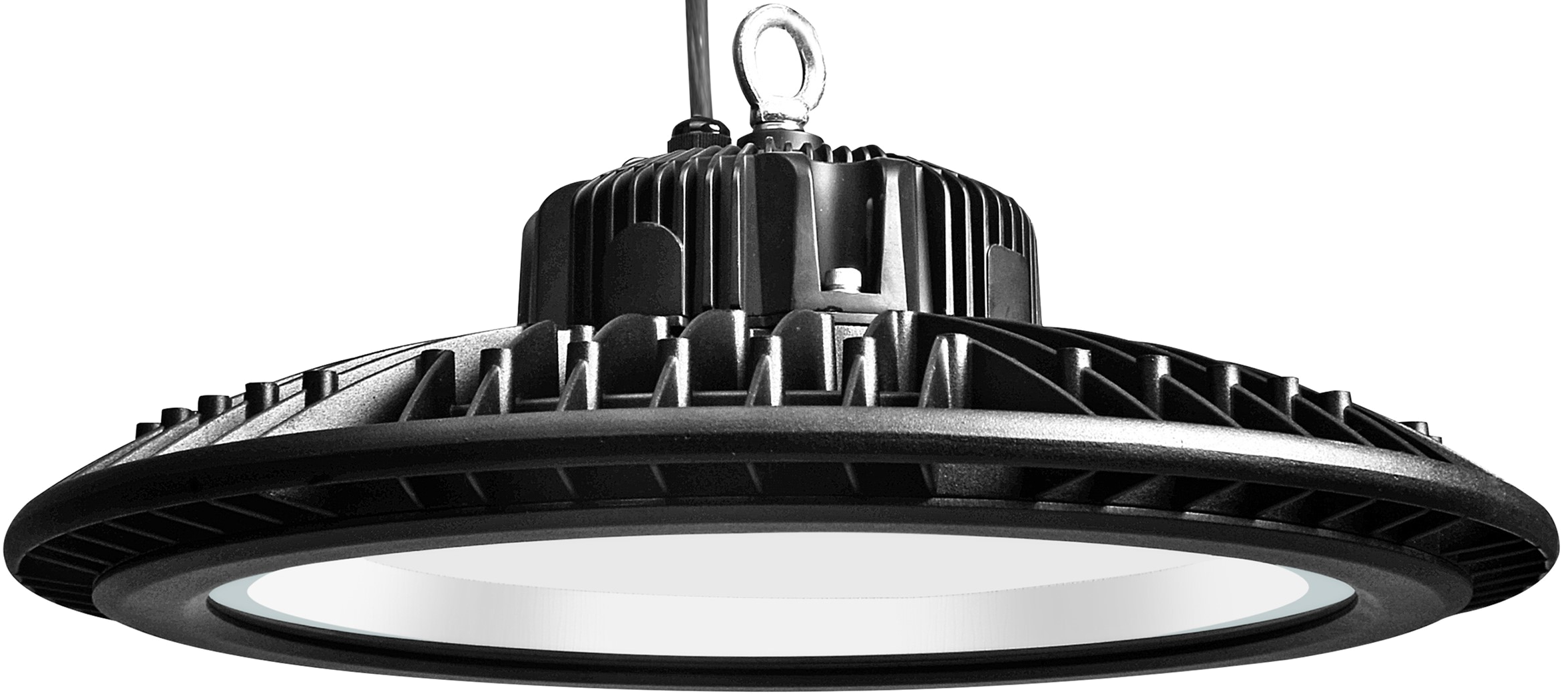

LED HIGHBAY
Electrical System
Wattage Range • 240W, 300W
Input Voltage • 100 - 240Vac, 50/60Hz
Insulation Class • Class I
LED Driver • Meanwell HBG IP65
Light Source
LED Type • SMD 3030 with TM21 and LM80
Color Temperature (CCT) • 6000K (Other Upon Request)
Color Rendering Index (CRI) • Ra > 80 (Ra > 90 Upon Request)
Life Time Residual Flux • (L70), >50,000 hours @ Ta: 50˚C
Optical System • ~120˚ With Standard Tempered Glass Cover
Working Temperature • Ta : -30˚C to +45˚C
Fixture
Ingress Protection (IP) • IP65
Impact Resistance (IK) • IK08

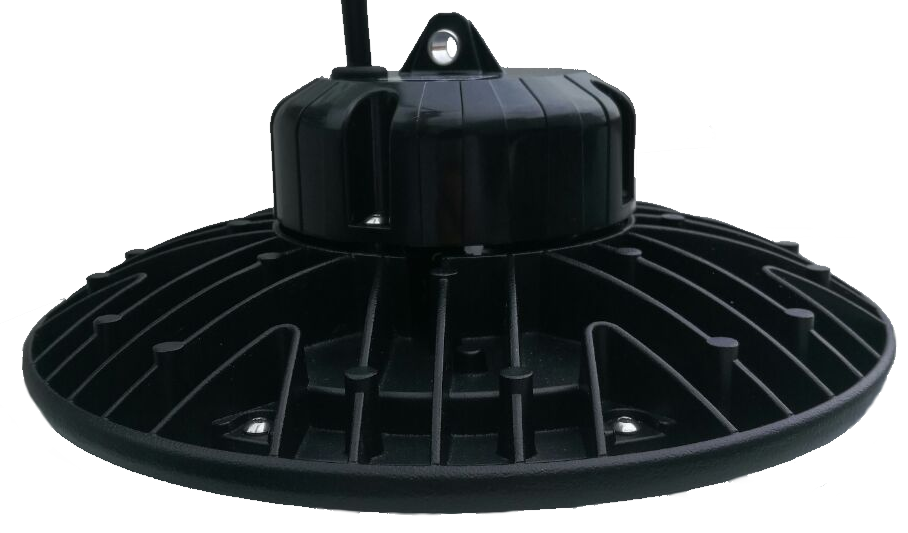

Housing Material • ADC 12 Die Cast Aluminium
Housing Finish • Akzo Nobel Epoxy Powder Coating - Black
Application
• Warehouse • Factory • Halls & Retails
• Hangar • Sport Centre
Optional Item

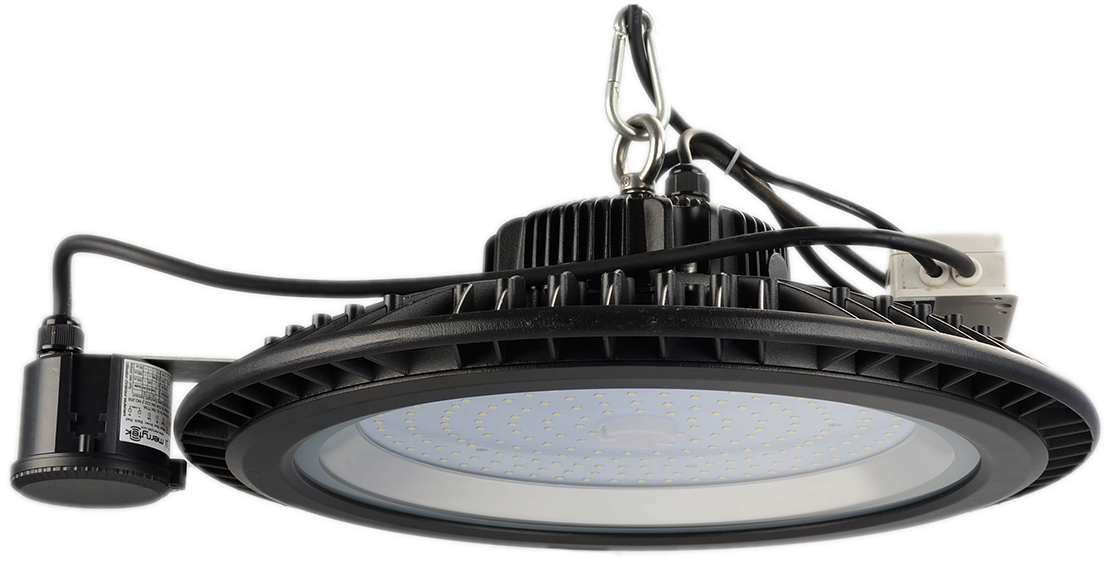

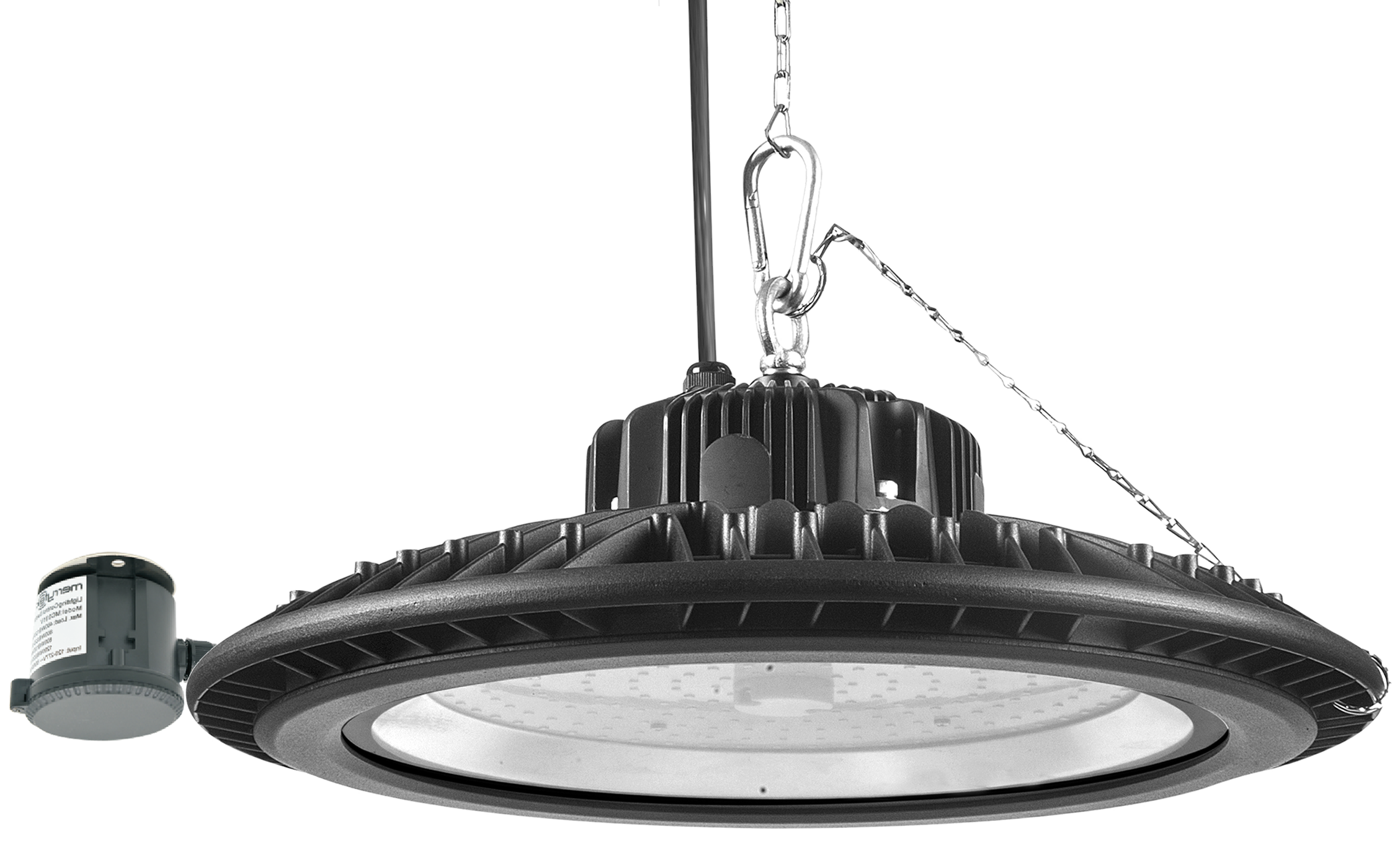

• Motion Sensor
• DALI / 1-10V Dimming Control
• IoT Smart Control System
• Clear PC Lens (Safe For Food Process Factory)
• Opal PC Lens (Glare Reduction)
• Glare Control Diffuser (Optional Upon Request)
Wattage Range • 240W, 300W
Input Voltage • 100 - 240Vac, 50/60Hz
Insulation Class • Class I
LED Driver • Meanwell HBG IP65
Light Source
LED Type • SMD 3030 with TM21 and LM80
Color Temperature (CCT) • 6000K (Other Upon Request)
Color Rendering Index (CRI) • Ra > 80 (Ra > 90 Upon Request)
Life Time Residual Flux • (L70), >50,000 hours @ Ta: 50˚C
Optical System • ~120˚ With Standard Tempered Glass Cover
Working Temperature • Ta : -30˚C to +45˚C
Fixture
Ingress Protection (IP) • IP65
Impact Resistance (IK) • IK08
Housing Material • ADC 12 Die Cast Aluminium
Housing Finish • Akzo Nobel Epoxy Powder Coating - Black
Application
• Warehouse • Factory • Halls & Retails
• Hangar • Sport Centre
Optional Item
• Motion Sensor
• DALI / 1-10V Dimming Control
• IoT Smart Control System
• Clear PC Lens (Safe For Food Process Factory)
• Opal PC Lens (Glare Reduction)
• Glare Control Diffuser (Optional Upon Request)
