TENJO/HB
EY969

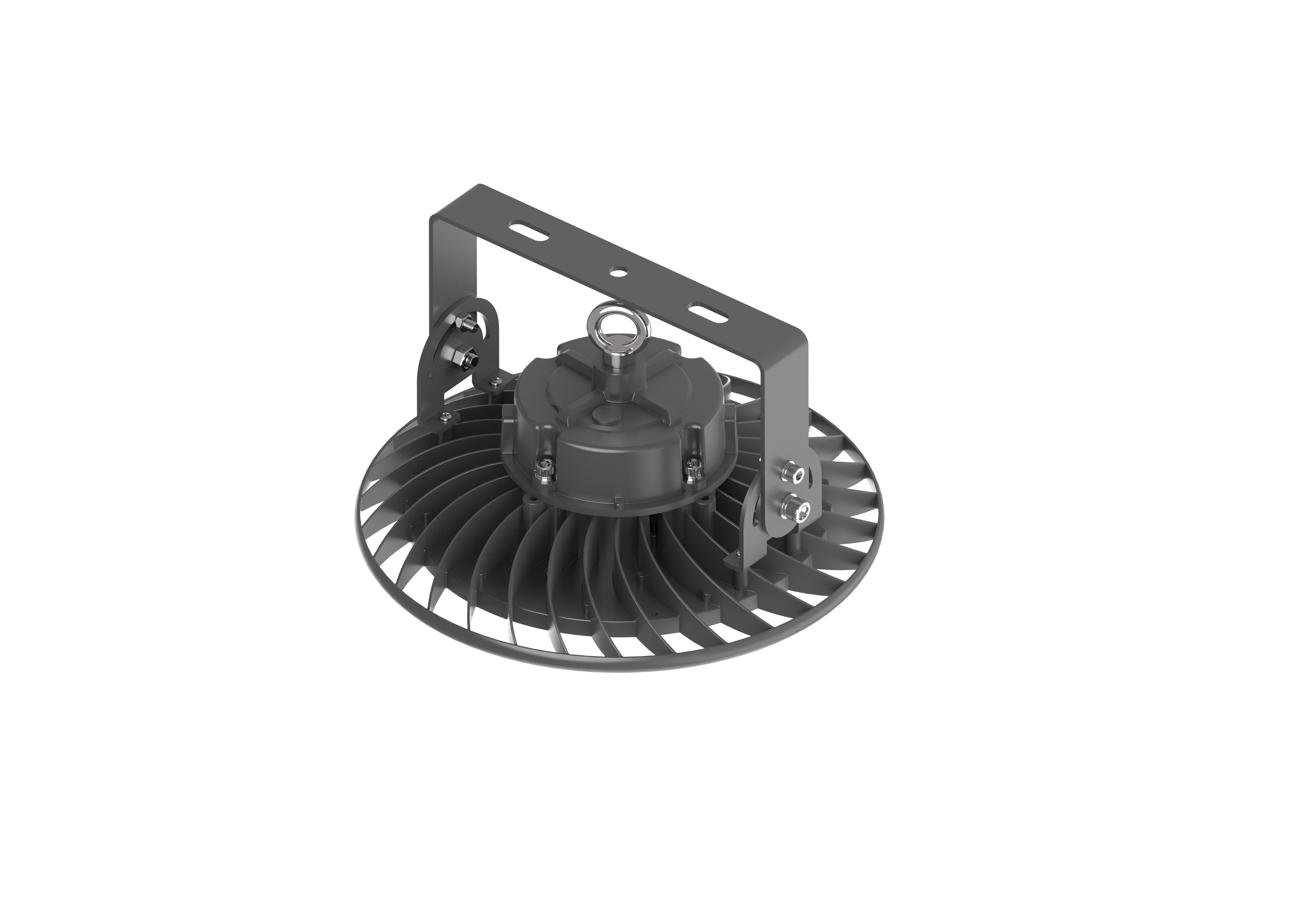

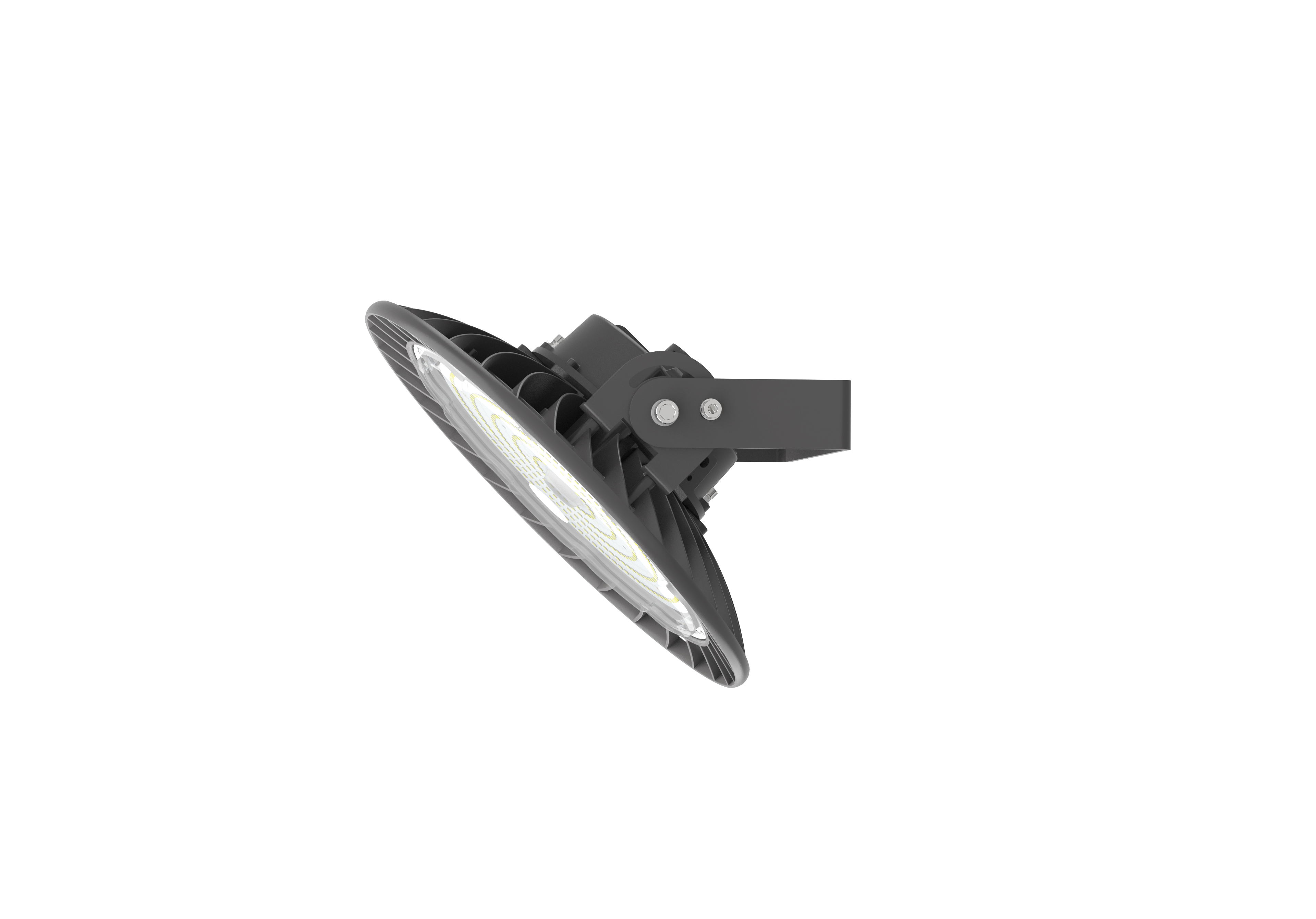

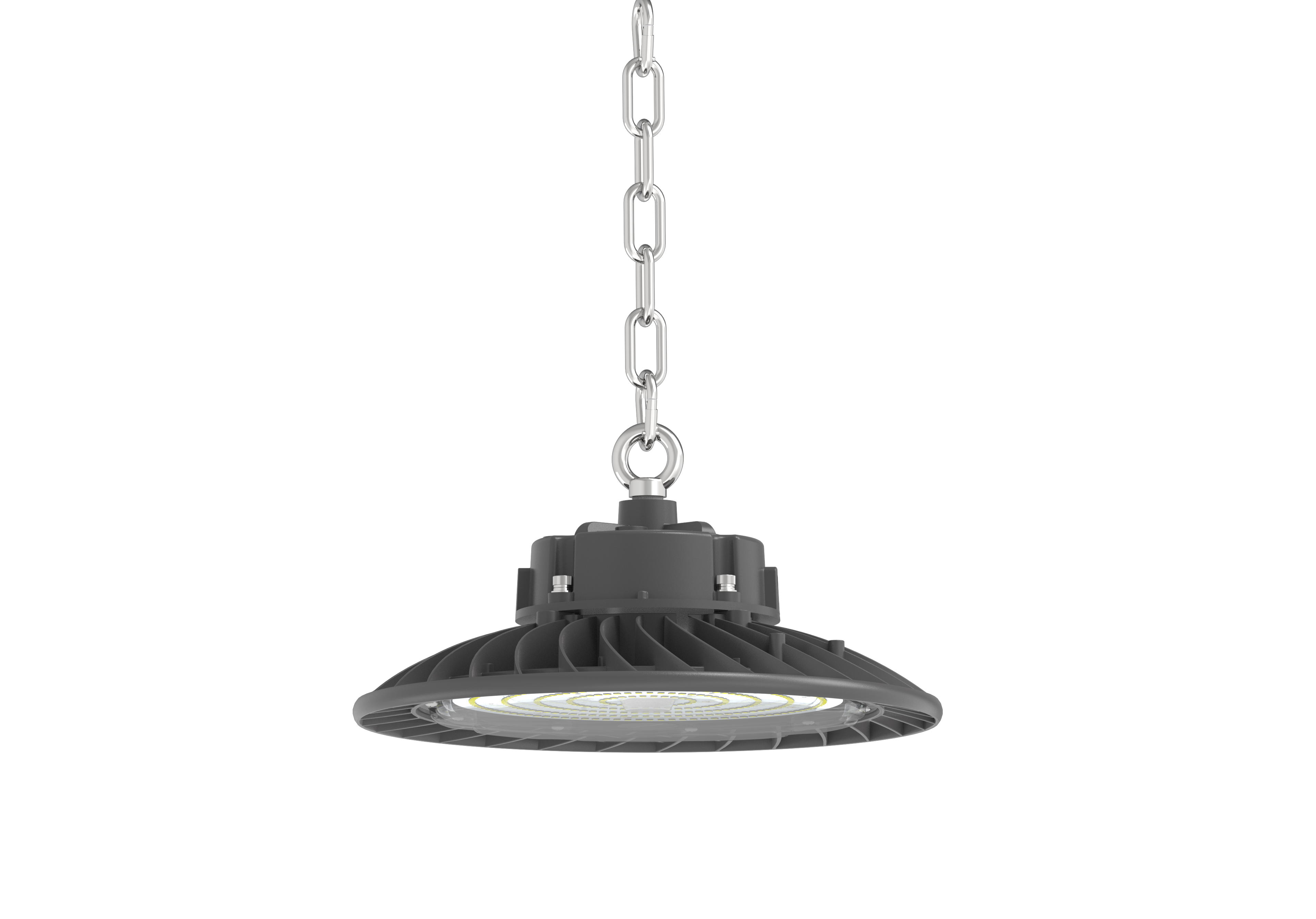

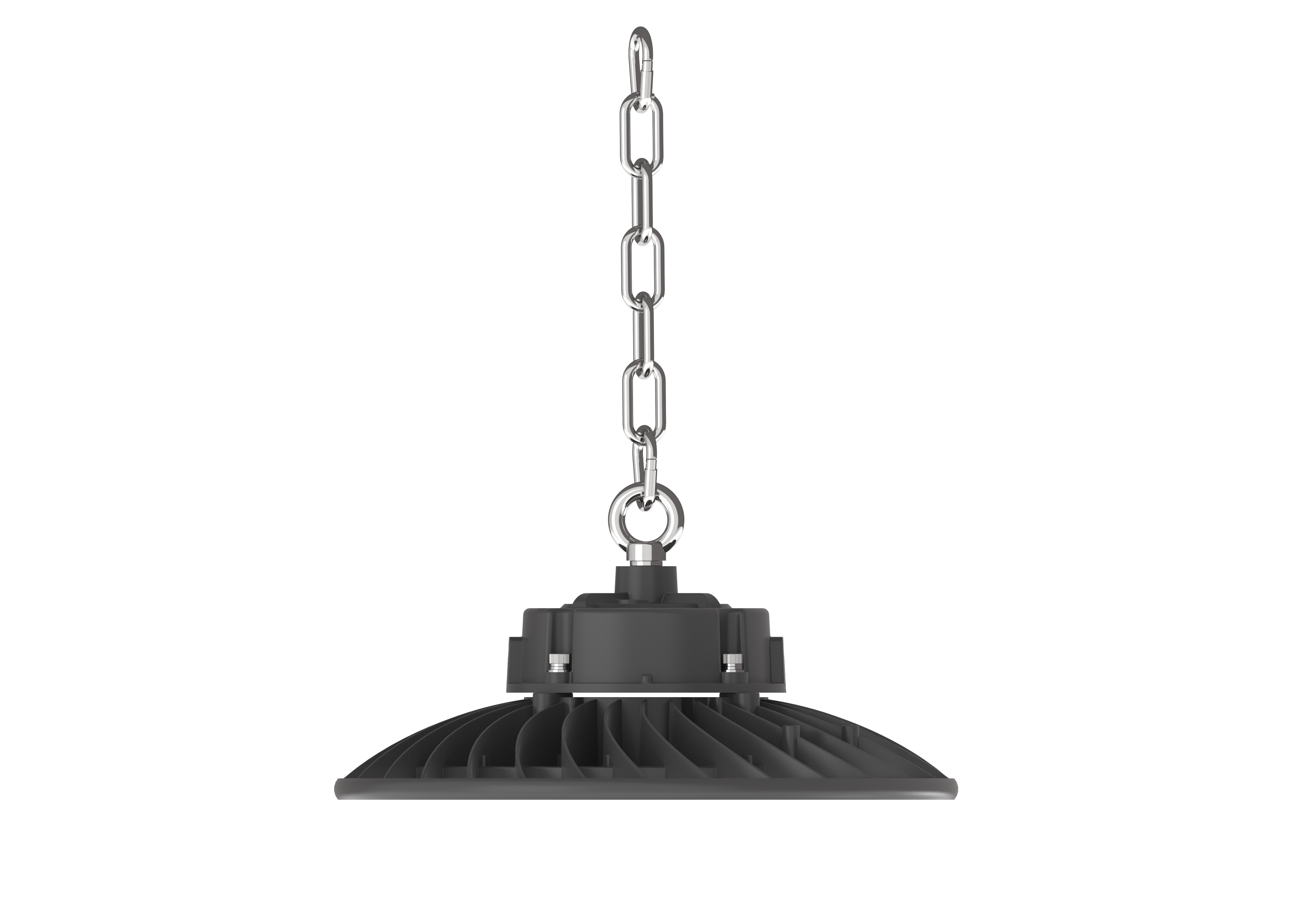

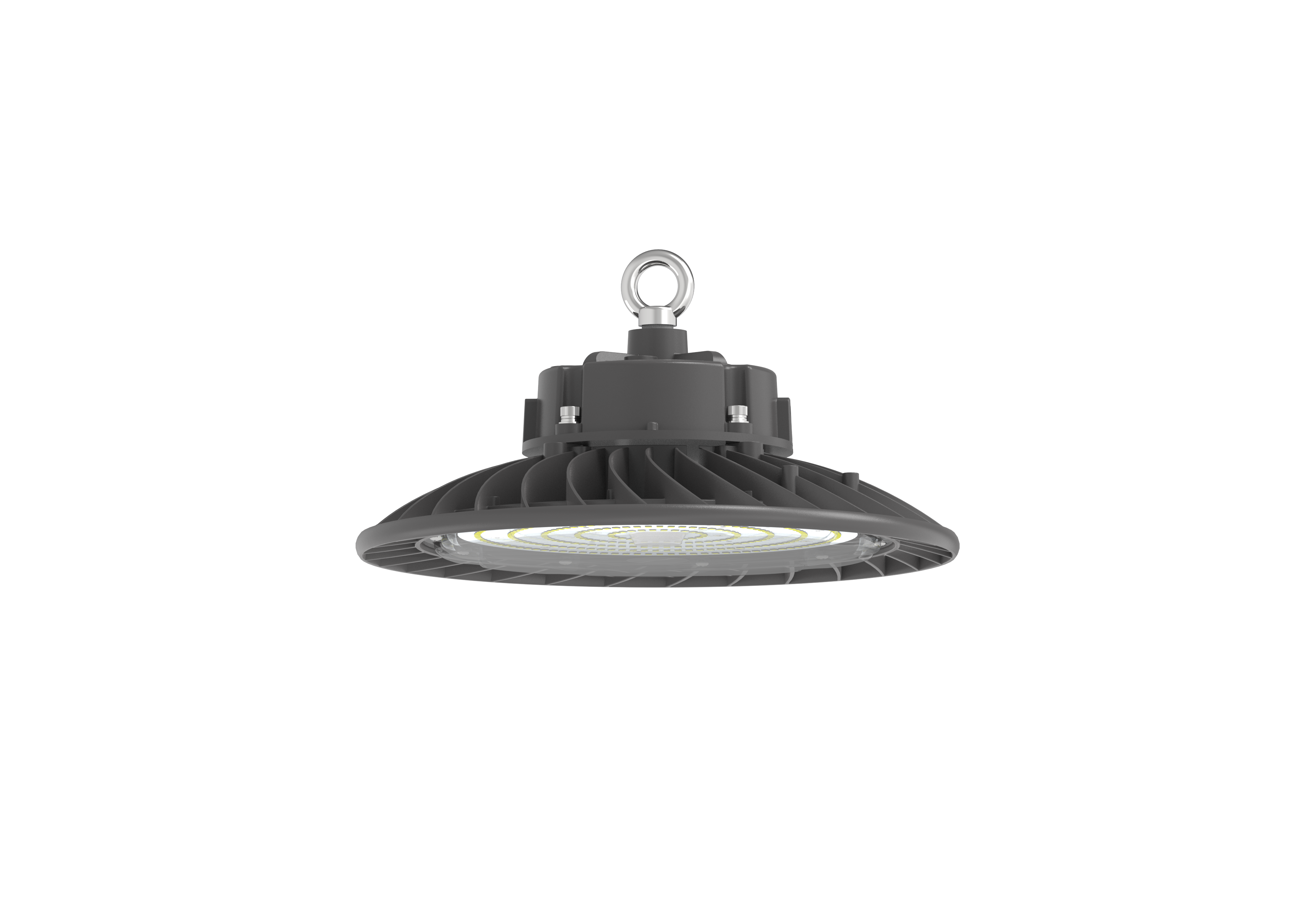

LED HIGHBAY
Electrical System
Wattage Range • 60W, 80W, 100W, 120W, 150W, 200W & 240W
Input Voltage • 100 - 240Vac, 50/60Hz
Insulation Class • Class I
Light Source
LED Type • SMD 2835 with TM21 and LM80
Color Temperature (CCT) • 4000K & 6000K (Other Upon Request)
Color Rendering Index (CRI) • Ra > 70 (Ra > 80, 90 Upon Request)
Life Time Residual Flux • (L70), >50,000 hours @ Ta: 50˚C
Optical System • Standard 90˚ (60˚ and 110˚ Upon Request)
Working Temperature • Ta : -10˚C to +50˚C
Fixture
Ingress Protection (IP) • IP65
Impact Resistance (IK) • IK09
Housing Material • ADC 12 Die Cast Aluminium
Housing Finish • Akzo Nobel Epoxy Powder Coating - Black
Application
• Warehouse • Factory • Halls & Retails
• Hangar • Sport Centre
Optional Item
• Motion Sensor
• DALI / 1-10V / 0-10V Dimming Control
• Smart Control System
• U-Bracket Mounting
• Opal Anti-Glare Visor
Wattage Range • 60W, 80W, 100W, 120W, 150W, 200W & 240W
Input Voltage • 100 - 240Vac, 50/60Hz
Insulation Class • Class I
Light Source
LED Type • SMD 2835 with TM21 and LM80
Color Temperature (CCT) • 4000K & 6000K (Other Upon Request)
Color Rendering Index (CRI) • Ra > 70 (Ra > 80, 90 Upon Request)
Life Time Residual Flux • (L70), >50,000 hours @ Ta: 50˚C
Optical System • Standard 90˚ (60˚ and 110˚ Upon Request)
Working Temperature • Ta : -10˚C to +50˚C
Fixture
Ingress Protection (IP) • IP65
Impact Resistance (IK) • IK09
Housing Material • ADC 12 Die Cast Aluminium
Housing Finish • Akzo Nobel Epoxy Powder Coating - Black
Application
• Warehouse • Factory • Halls & Retails
• Hangar • Sport Centre
Optional Item
• Motion Sensor
• DALI / 1-10V / 0-10V Dimming Control
• Smart Control System
• U-Bracket Mounting
• Opal Anti-Glare Visor
