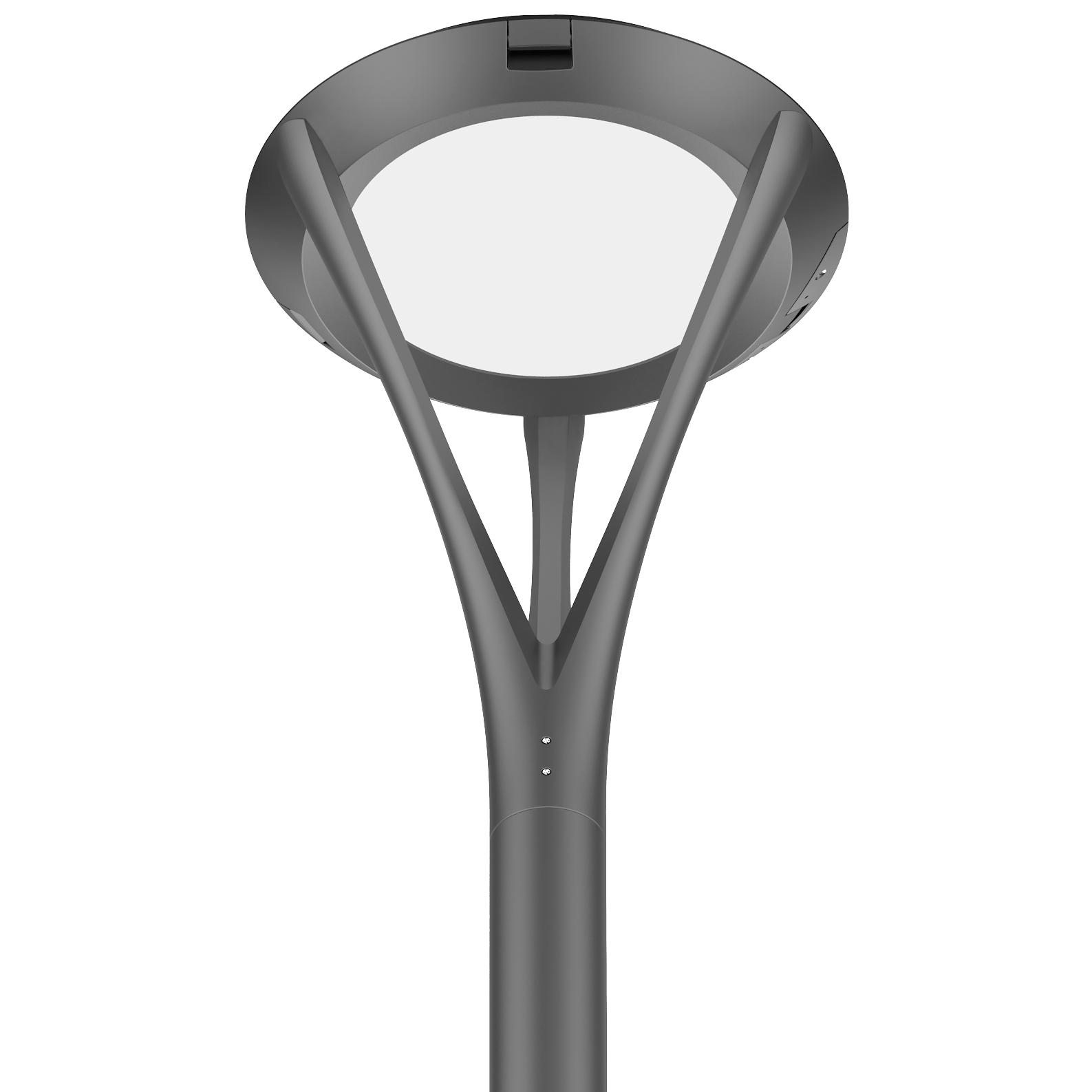

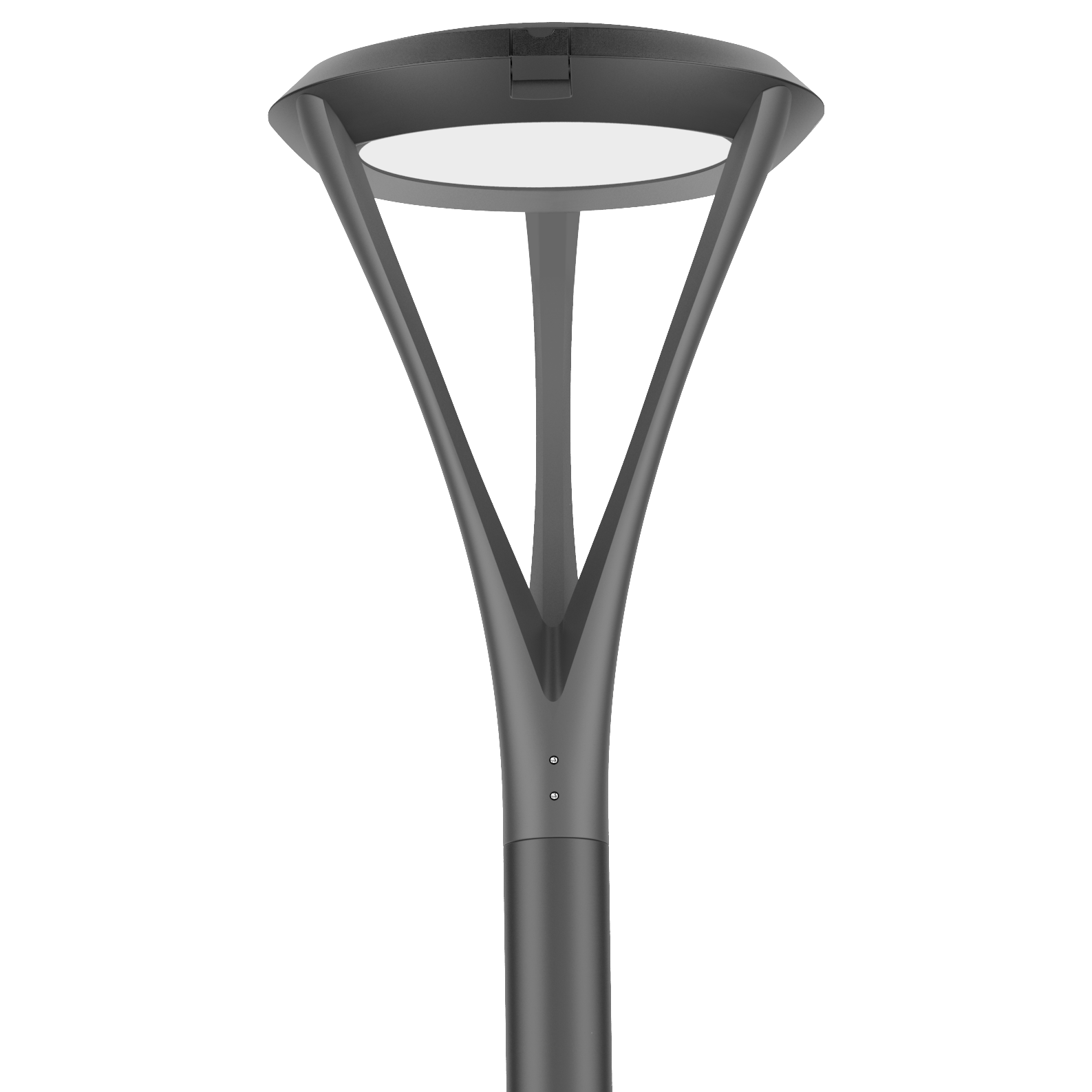

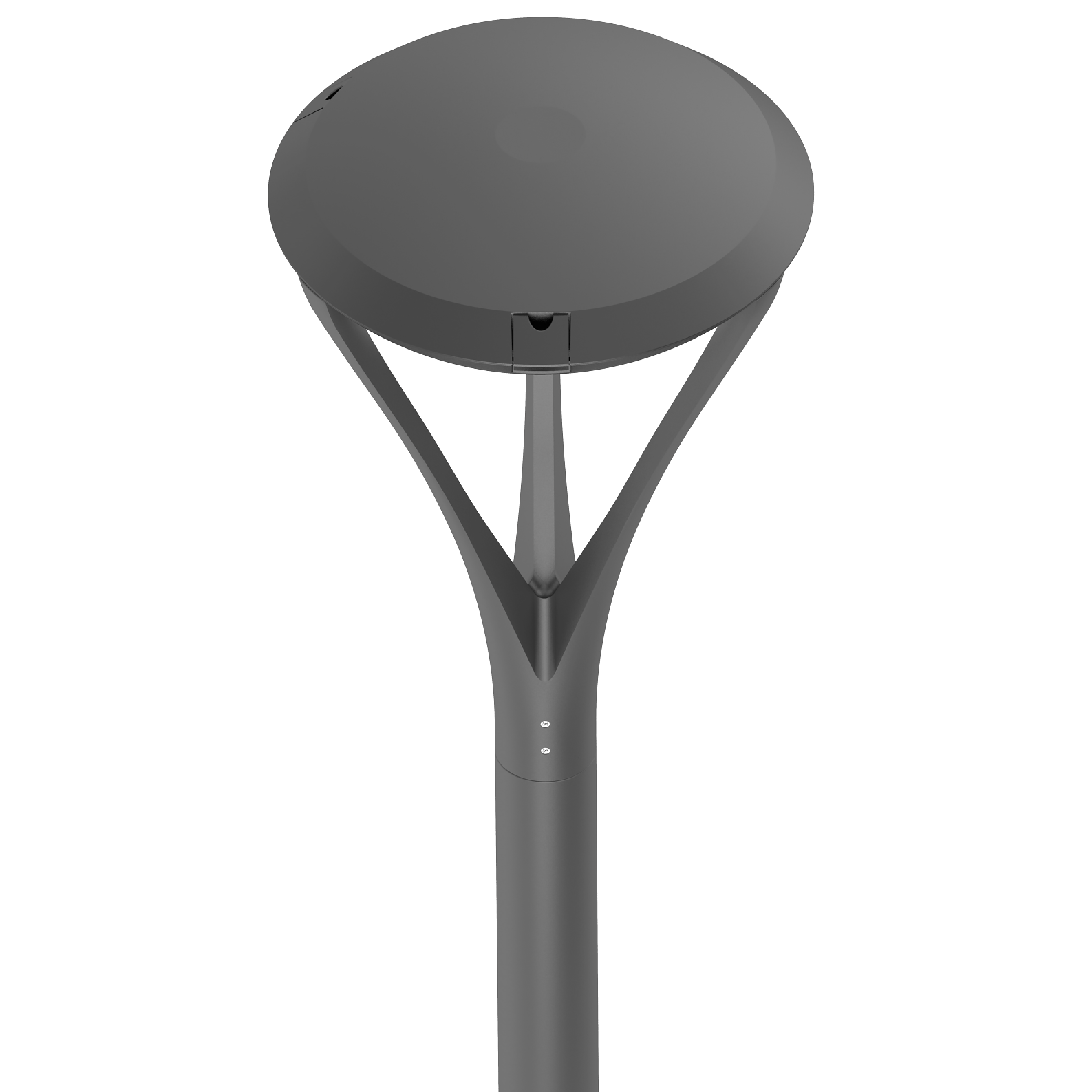

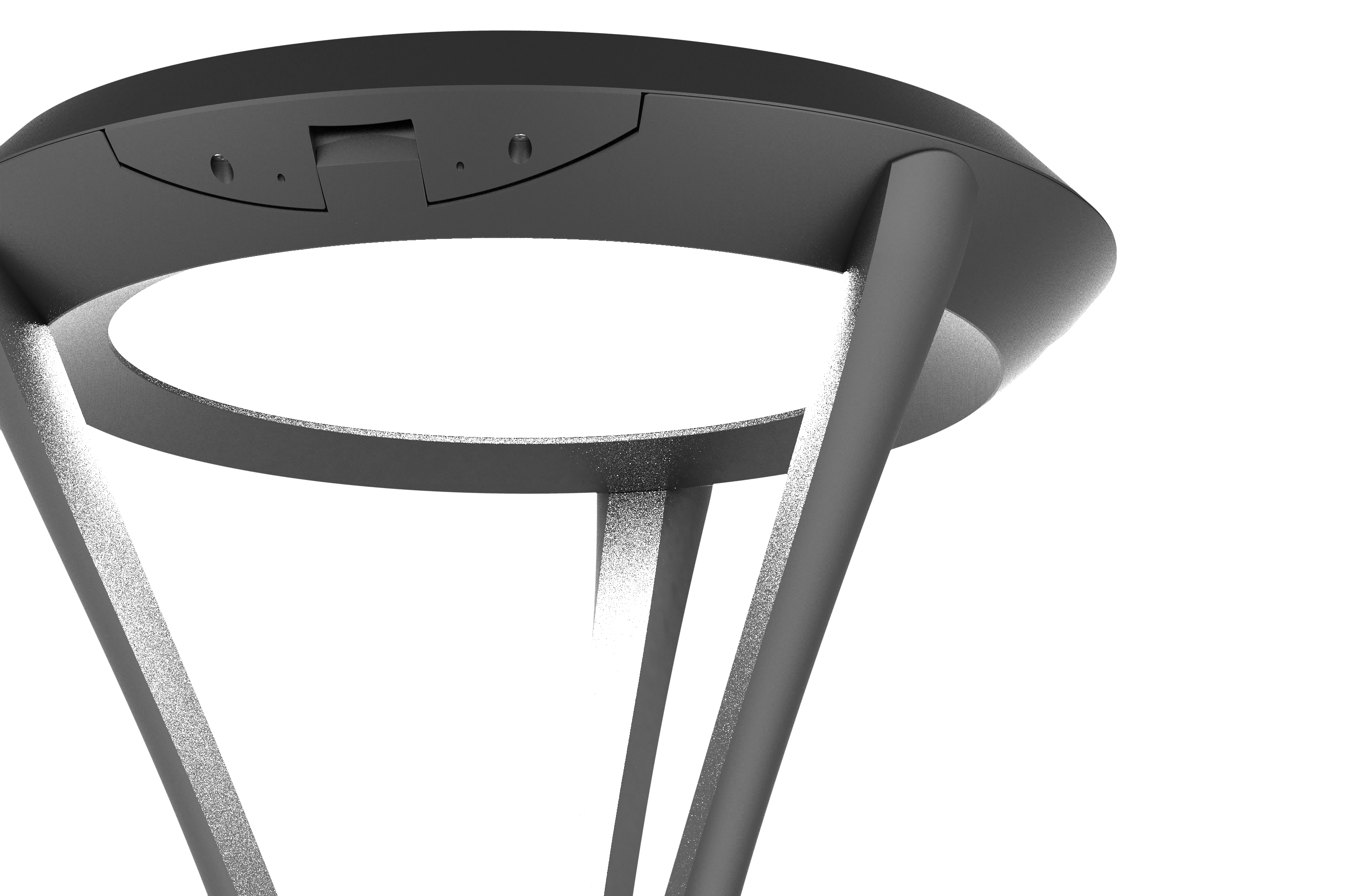

TRIDENT
LED AREA LIGHT
ELECTRICAL SYSTEM
• Input Voltage : 100 - 277Vac, 50/60Hz
• Input Voltage : 100 - 277Vac, 50/60Hz
• Insulation Class : Class I
• LED Driver : Inventronics (Dimming Optional)
LIGHT SOURCE / OPTIC
LIGHT SOURCE / OPTIC
• LED Type : SMD 2835 with TM21 and LM80
• Color Temperature (CCT): 3000K, 5000K (Upon request)
• Color Rendering Index (CRI): Ra > 70 (Ra > 80 upon request)
• Life Time Residual Flux: (L80), >50,000 hours @ Ta: 40°C
• Optical System : PMMA LGP
• Working Temperature : Ta : -20˚C to +40˚C
COMPLIANCE
COMPLIANCE
• Type Test Certified(Luminaire): EN 60598-1, EN 60598-2-3, EN 62321
• EMC Certified : EN 61000-3-2, EN61000-3-3, EN 55015, EN 61547
• LED Compliances Test : IESNA LM-80, TM-21
FIXTURE/HOUSING
FIXTURE/HOUSING
• Ingress Protection (IP) : IP66
• Impact Protection (IK) : IK09
• Housing Material : Die-Cast Aluminium
• Heatsink Material : Die-Cast Aluminium
• Lamp Cover Material : UV Stabilized Polycarbonate
• Housing Finish : Black Powder Coating
